Monitor Audio CSS 230 Slim In-Ceiling Speaker
₹40,000.00
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
Dispatch Time 1-2 Business Days
28 people are viewing this right now
Out of stock
Description
Key Features
Technical Specs
About the brand
Reviews
Questions
Setup
Awards
Description
The Monitor Audio CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2″) mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.
Key Features
- Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted

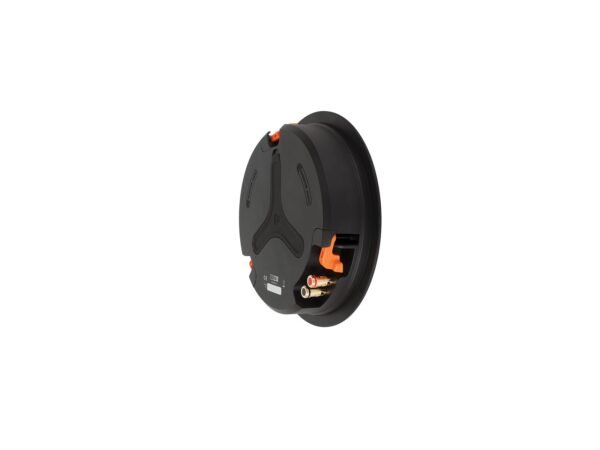

- Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

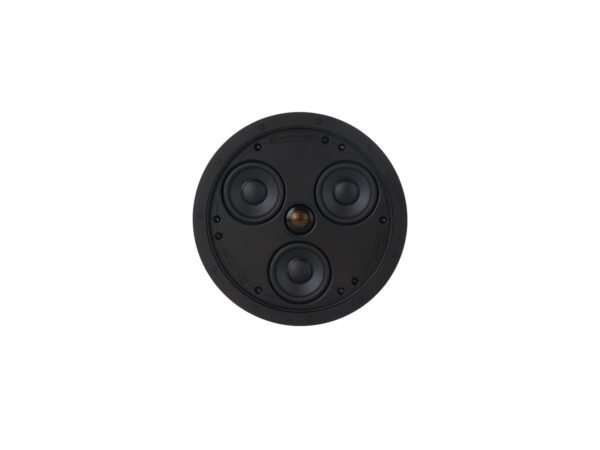

- Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality

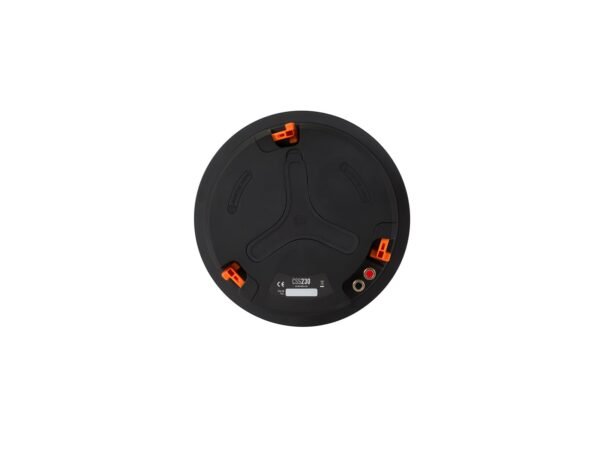

- Gold plated sprung push terminals are reliable and easy to connect

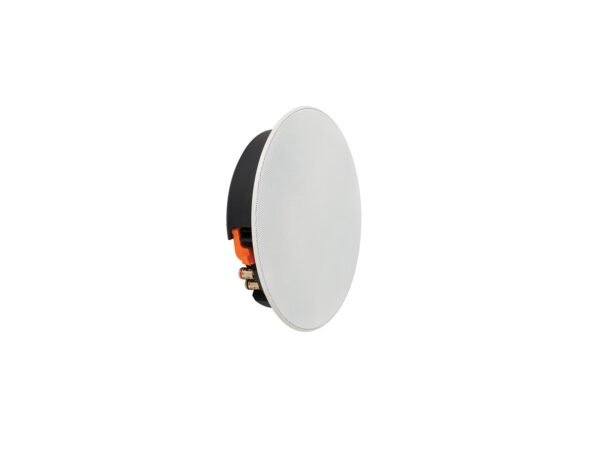

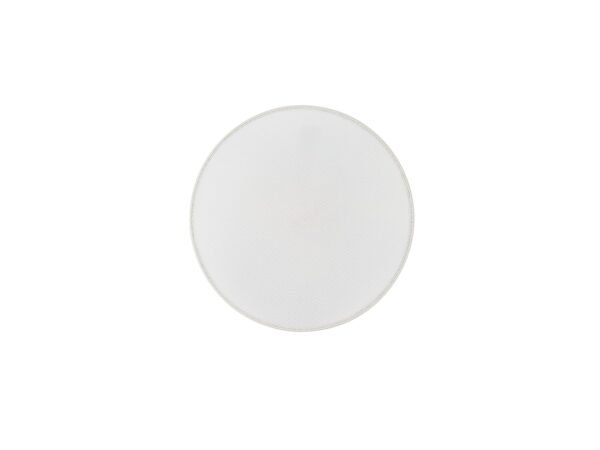

Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor - Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
- Existing CB6 pre-construction bracket for easier system design and planning
Technical Specs
| Technical Details | |
|---|---|
| Frequency Response (-6 dB) | 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | 103.8 dBA |
| Power Handling (RMS) | 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave) |
| Recommended Amplifier Requirements | 10 – 60 W |
| Drive Unit Complement | 3 x 3" C-CAM cone bass-mid drivers 1 x 19 mm (3/4") C-CAM Gold Dome tweeter |
| Crossover Recommendation | 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
| Connection | Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2) |
| Overall Diameter (Including Grille) | 250 mm (913/16") |
| Overall Depth (Including Grille) | 54 mm (21/8") |
| Cut-Out Hole Diameter | 211 mm (81/4") |
| Mounting Depth | 50 mm (2") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille |
| Weight | 2.88 kg (6 lb 5 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Sold As | Single Unit |
