Monitor Audio CP-WT380IDC 3 Way In-Wall Speaker (Pc)
₹91,000.00
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
21 people are viewing this right now
Out of stock
Description
Key Features
Technical Specs
About the brand
Reviews
Questions
Setup
Awards
Description

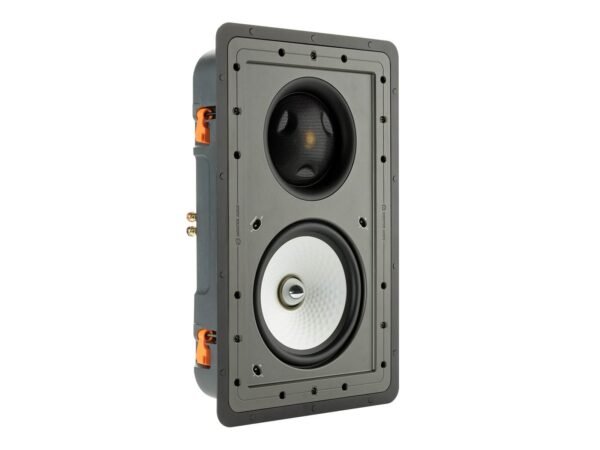

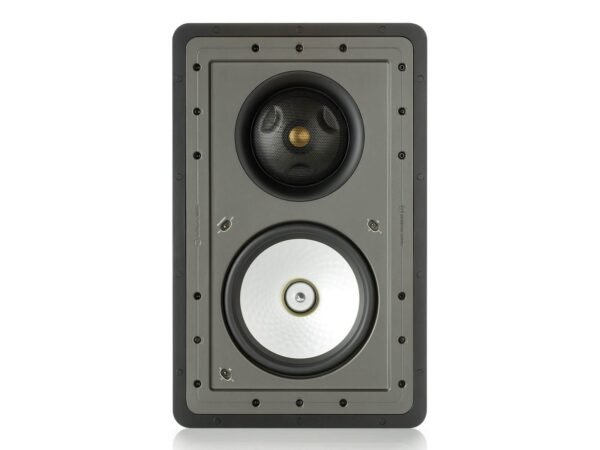

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8″ RST C-CAM bass driver, the three-way Monitor Audio CP-WT380IDC represents the highest level of new CP performance.
Key Features

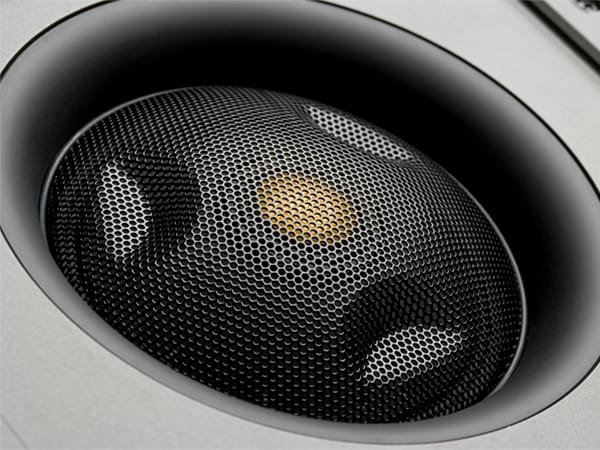

- Pivoting IDC C-CAM gold dome tweeter.
- Pivoting module consisting of IDC midrange driver and C-CAM Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency. High frequency level adjustment (+/-3 dB).
- Midrange frequency level adjustment. Boundary compensation controls.
- Die-cast aluminium front baffle.

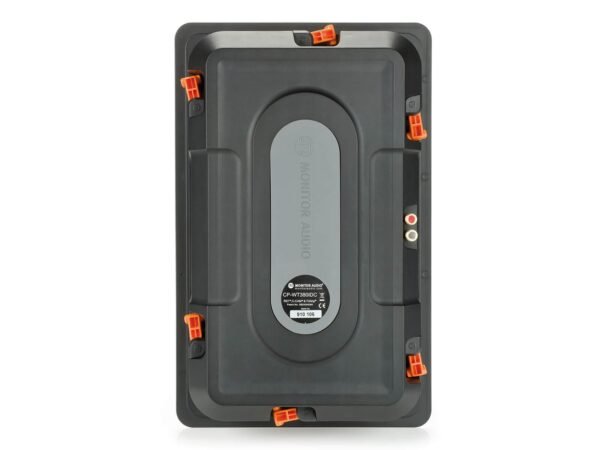

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment.
- Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Technical Specs
Â
| Technical Details | |
|---|---|
| Frequency Response | 50 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8" C-CAM RST cone bass driver 4" C-CAM IDC cone mid range driver 1" C-CAM Gold Dome tweeter (tweeter & midrange driver combined in a pivoting module) |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) MF Level Switch (+ 3dB/ 0 dB/ -3 dB) Boundary Compensation Switch |
| Overall Dimensions (H x W x D) | 472.5 x 303.5 mm (185/8 x 1115/16") |
| Overall Depth (Including Grille) | 106 mm (43/16") |
| Mounting Depth | 99 mm (37/8") |
| Optional Square Grille - Outer Dimensions | 309 x 309 mm (123/16") |
| Fixing Type | 6 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 5.62 kg (12 lb 6 oz) |
| Pre-Construction Bracket | WB10 Pre-Construction Bracket (Light Brown) |
| Crossover Frequency | Bass low pass: 300 Hz @ 6 dB / Octave Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave |
| Sold As | Single Unit |
Monitor Audio
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
