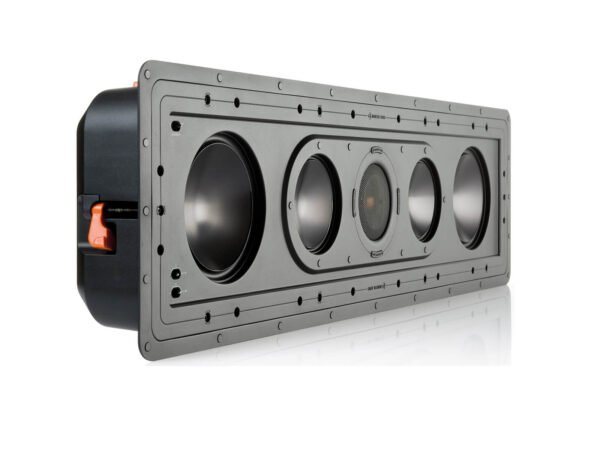

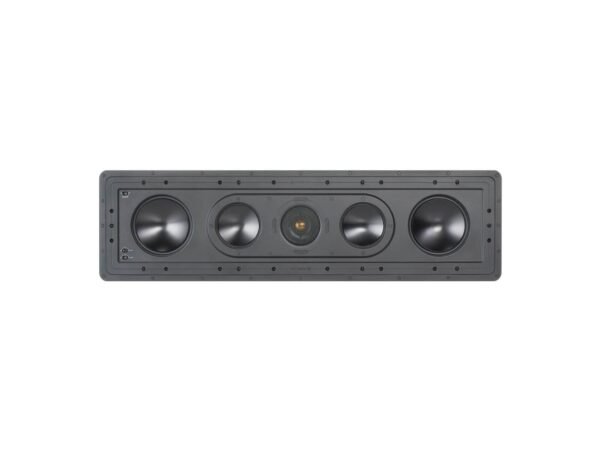

Monitor Audio CP-IW 460X (L) In-Wall Speaker
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: High Gloss Black / Satin White
Warranty: 1 Year
Description
The luxury Monitor AudioCP-IW260X and Monitor Audio CP-IW 460X (L) in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
The Monitor Audio CP-IW 460X (L) features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5″ bass drivers and twin 4″ mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.
Key Features
- Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
- Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
- Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
- C-CAM Ribbon High Frequency transducer
Innovative HF rotating system to facilitate portrait or landscape orientation - Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

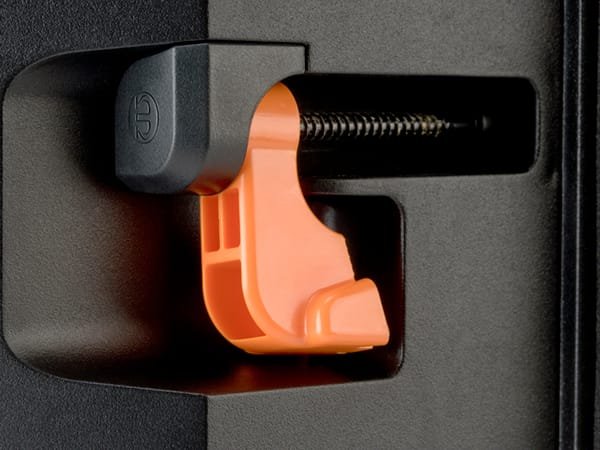

- Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Technical Specs
| Technical Details | |
|---|---|
| Frequency Response | 50 Hz – 60 kHz (-6 dB typical in room response) |
| Sensitivity (1W@1M) | 89 dB |
| Nominal Impedance | 6 ohms |
| Power Handling (RMS) | 150 W |
| System Power Handling (RMS) | 150 W |
| Recommended Amplifier Requirements | 60 – 150 W |
| Maximum SPL | 113.8 dBA |
| Crossover Frequency | L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave |
| Drive Unit Complement | 2 x 6.5” C-CAM Bass drivers with RST cone technology 2 x 4” C-CAM Mid-range drivers with RST cone technology 1 x C-CAM H.F ribbon transducer |
| Overall Dimensions (H x W x D) | 907 x 257 mm (353/4 x 101/8") |
| Overall Depth (Including Grille) | 102 mm (4") |
| Cut-Out Dimensions | 880 x 230 mm (3421/32 x 9") |
| Mounting Depth | 96 mm (33/4") |
| Fixing Type | 10 x Tri-Grip Dog leg fixings |
| Construction Material | Cast Polymer enclosure with die-cast Aluminum baffle (RoHS2 Compliant) |
| Weight | 3.6 kg (7 lb 14 oz) |
| Pre-Construction Bracket | WB12 Pre-Construction Bracket (Green) |
| Sold As | Single Unit |
