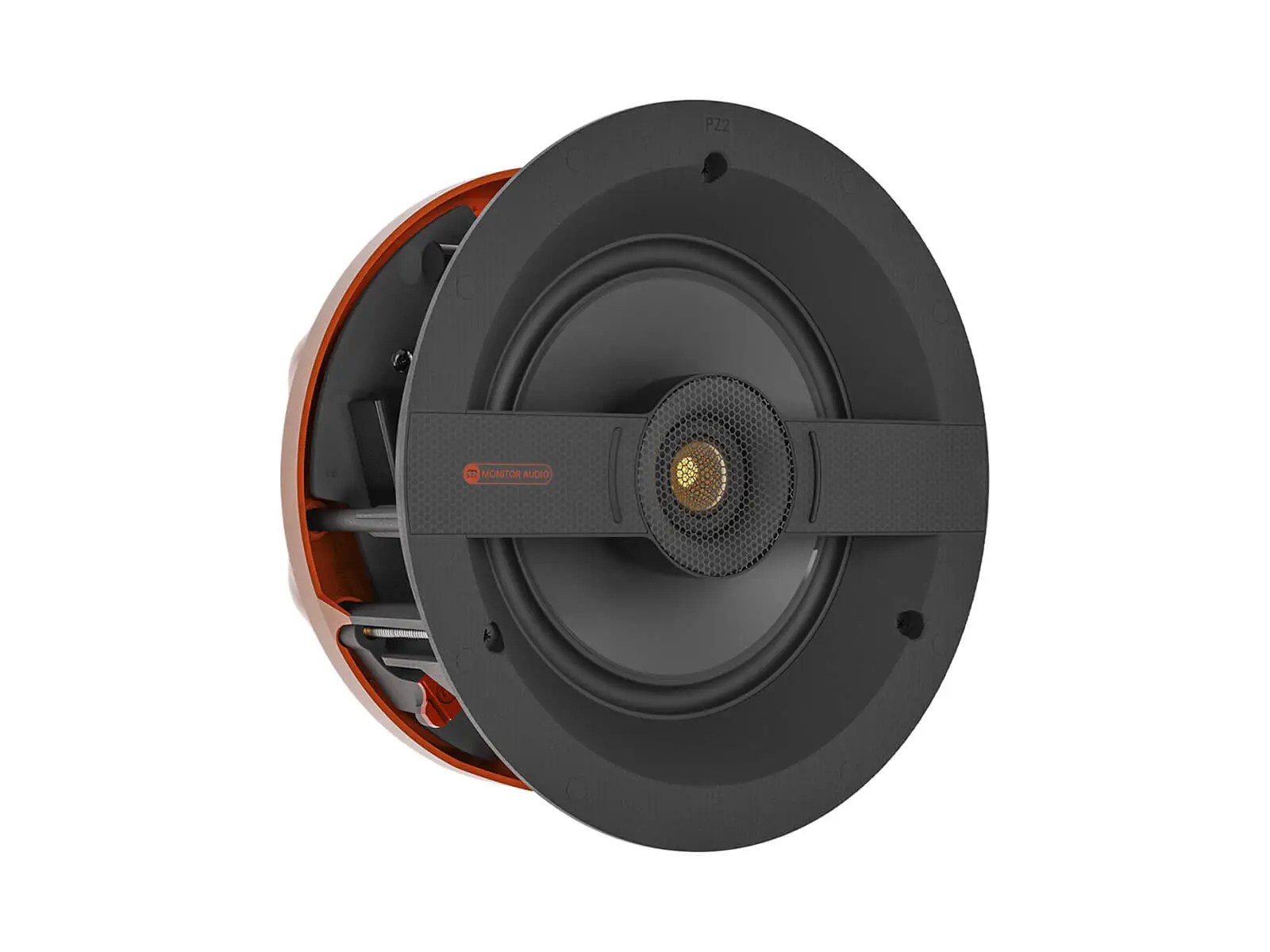

Monitor Audio C1M In-Ceiling Speaker (Pc)
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
Description
Monitor Audio C1M
This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 7" (178 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Technical Specs
| Technical Details | |
|---|---|
| System Format | 2–Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 35 Hz – 30 kHz |
| Nominal Impedance | 8 ohm |
| Minimum Impedance (20Hz to 20kHz) | 6.5 Ohm @ 150 Hz |
| Sensitivity (2.83Vrms@1m, Installed) | 86 dB |
| Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 113 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 65 W |
| Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 35 – 130 W |
| Drive Unit Complement | 1 x 7" (178 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter |
| Crossover Frequency | LF/HF: 2 kHz |
| Mounting Depth | 99 mm (37/8”) |
| Cut-Out Hole Diameter | 212 mm (83/8") |
| External Dimensions (Including Grille (H x W x D)) | 242 x 242 x 103 mm (91/2 x 91/2 x 44/16") |
| Weight | 1.9 kg (4 lb 3 oz) |
| Pre-Construction Bracket | CM-B |
| Cabinet Finish | Matt black & Orange |
| Sold As | Single Unit |
