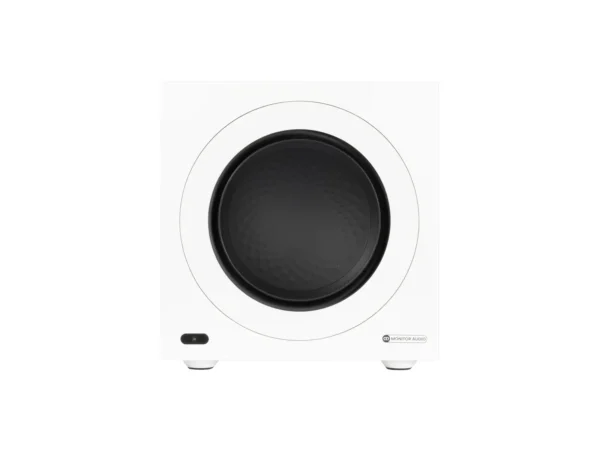

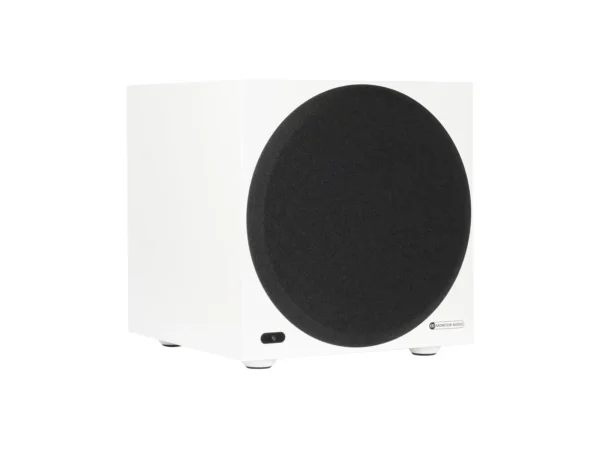

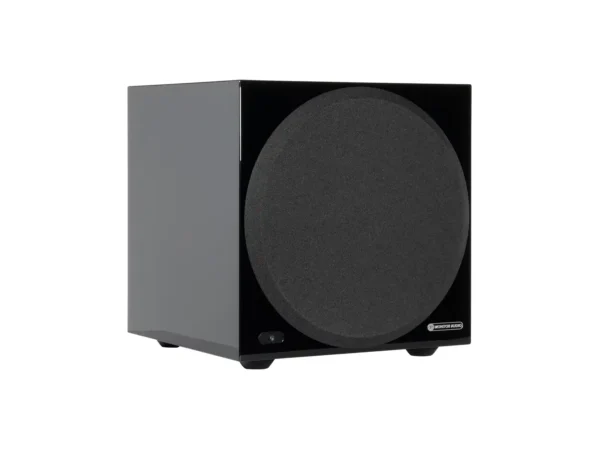

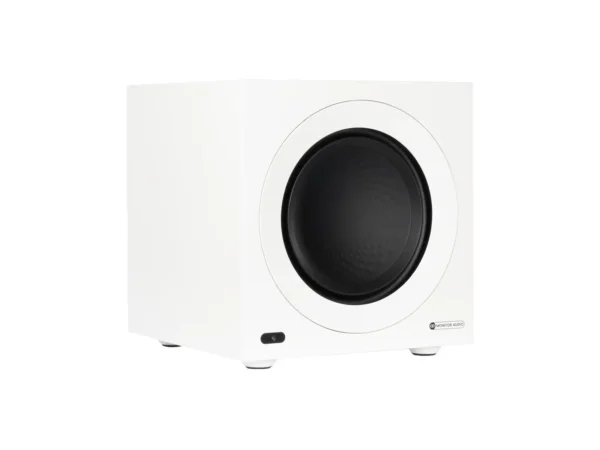

Monitor Audio Anthra W10 Subwoofer
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: Black / White
Warranty: 1 Year
Description
The Monitor Audio Anthra W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

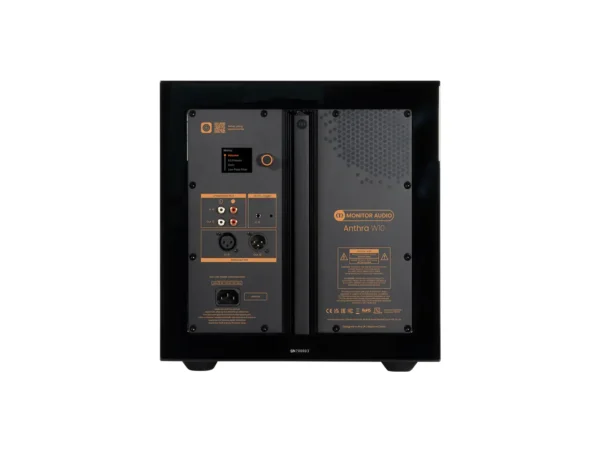

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Key Features
- 1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance.
- 1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
- Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allows daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allows daisy chain of up to four Anthra subwoofers
Technical Specs
| Technical Details | |
|---|---|
| System Format | Active – Sealed Cabinet |
| Drive Unit Complement | 1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver |
| Lower Frequency Limit | -6dB @17Hz |
| Upper Frequency Limit | (LPF Off) -6dB @400Hz |
| Amplifier Output Power, 240Vac | Instantaneous: 500 W* Continuous short-term: 425 W** |
| Amplifier Classification | High-Efficiency Class-D |
| DSP | 28 Bit 50 MIPS Configuratable through MaestroUnite |
| Analogue Digital Conversion | Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
| LED UI Control | Brightness, On-Off |
| Phase Control | 0-360 Degrees measured at LPF Crossover |
| Low Pass Filter | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ | Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level | Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR |
| Outputs | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input |
| External Dimensions (without feet) (HxWxD) | 321 x 321 x 321 mm |
| Power Consumption | 120 W |
| Weight | 20.06 kg (44 lb 1 oz) |
| Sold as | Single Unit |
Monitor Audio
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
