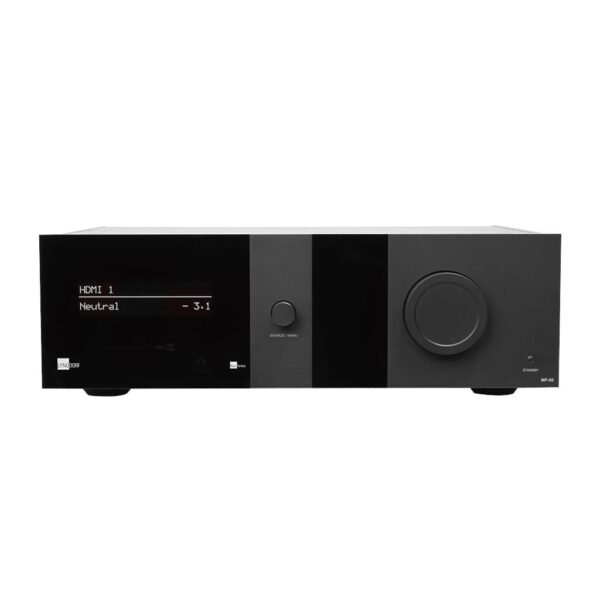

Lyngdorf MP-60 2.1 Surround Sound 16 Channel Processor
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: Denmark
Color: Black
Warranty: 1 Year
Description
Lyngdorf MP-60 2.1 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 2.1 is developed at the group headquarters in Skive, Denmark.
State-of-the-art HDMI processing
The MP-60 2.1 processor is intuitive to use and offers extraordinarily easy installation. It decodes up to 16 native audio channels which can be mapped out intelligently through the sleek website interface. The Lyngdorf MP-60 2.1 offers full support of the latest immersive surround formats including Dolby Atmos®, DTS:X® Pro and AURO-3D®.
With five HDMI inputs and two outputs, this new masterpiece from Lyngdorf Audio now supports HDMI 2.1 including features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. The MP-60 2.1 supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The MP-60 2.1 supports Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™.
eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.
Control the MP-60 2.1 with an app
The “Lyngdorf Remote” app automatically discovers the MP-60 2.1 connected to your local network, and you will be able to adjust all the basic functions like input selection and volume level from your handheld device. The built-in media player can be controlled directly, and you can access music files stored on pen drives connected to the Lyngdorf MP-60 2.1 as well as search all files stored on your local hard drives. Swiping left and right gives you access to cover art as well as informing you of the signal resolution.
“Lyngdorf Remote” app is available for free download from both IOS and Android.
Technical Specs
| Technical Details | |
|---|---|
| Decoding: |
16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs |
| Audio inputs: |
5 x HDMI™, 1 x HDMI™ eARC (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™ |
| Audio outputs: |
16 x XLR analog outputs (16 Vrms), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit) |
| Audio specifications: |
Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz |
| Contrast Ratio FOFO |
100,000:1 (w/ Dynamic Iris) |
| EQ: |
RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q |
| Media player: |
Internet radio (vTuner), Airplay, Spotify Connect, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/see DLNA formats) |
| Video inputs: |
5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG |
| Video outputs: |
2 x HDMI (HDCP 2.3) |
| Video scaling: |
Upscaling of all video to 4K ultra high definition, no downscaling of 4K video |
| Control interfaces: |

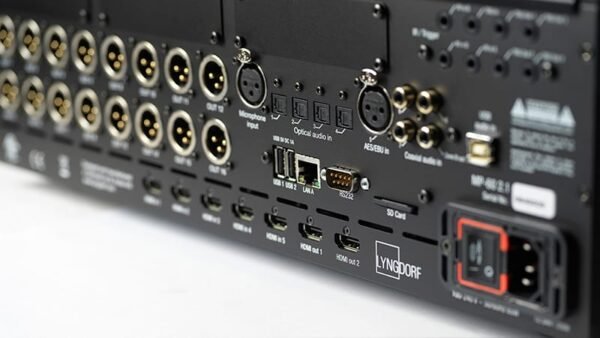

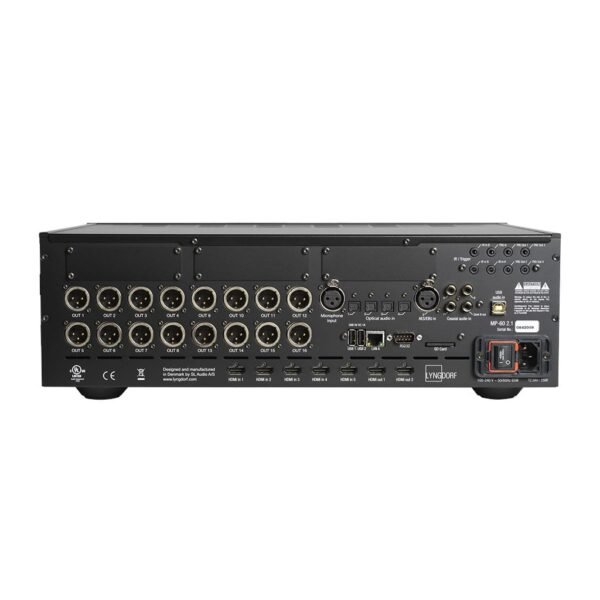

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings) |
| Accessories included: |
RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control |
| Optional module: |
16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz) |
| Remote control: |
Infrared/RF |
| Placement options: |
Rack mount and freestanding |
| Dimensions (H x W x D): |
14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in |
| Weight: |
9 kg / 19 lbs |
LYNGDORF
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
