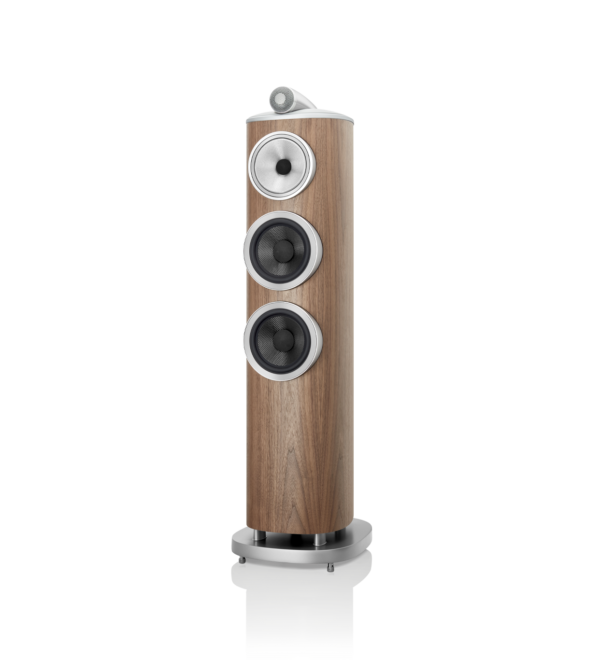

Bowers & Wilkins 804 D4 Floor standing loudspeaker (Pair)
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: Gloss Black / White / Satin Rosenut / Satin Walnut
Warranty: 1 Year
Bowers & Wilkins 804 D4 is the entry-level floor-standing model in the 800 Series Diamond range. Step up to 803 D4 and you’ll find larger bass drivers (180mm, 7in) plus, crucially, the addition of a Turbine™ Head enclosure for the 130mm (5in) midrange cone, which adds more space to the sound. For listeners who want the performance of an 800 Series Diamond™ floorstander but prefer a more conventional aesthetic, the 804 D4 is an ideal choice. Its new cabinet and plinth make it B&W’s top-performing 804 yet.
Classic Quality, Acoustic Revolution with Ultimate Sophistication
Bowers & Wilkins 804 D4 is perhaps more conventional in appearance than other floor standers in the 800 Series Diamond range, but it’s every bit as sophisticated. Its new Reverse-Wrap cabinet is both a mechanical and acoustic revolution in its class, and its new plinth ensures rock-solid, the accurate bass response too.
Reverse Wrap Cabinet
Instead of a conventional loudspeaker box, the cabinet in 804 D4 is made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Upgraded Cabinet With An All New Aluminium Top-plate
Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet with an all-new aluminium top plate. This also provides a superb mounting point for all-new Leather by Connolly trim, with plush black leather for dark cabinets and light grey for lighter finishes.
Aluminium Plinth For Maximum Stability And Durability
A top-notch speaker requires a rock-solid foundation. The new 804 D4 leverages a downwards-firing Flowport exiting onto a solid aluminium plinth complete with a steel constrained layer damping sheet, which keeps any undesired resonance in check. It also has significantlyupgraded spikes for enhanced stability and durability.
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum cone FST™
- Anti-Resonance plug
- Biomimetic Suspension
- Turbine Head
- Aerofoil cone bass units
|Technical Features||Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Aerofoil™ cone bass units
|Description||3-way vented-box system|
|Drive units||1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units
|Frequency Range||16Hz to 35kHz|
|Frequency response||24Hz to 28kHz (+/-3dB from reference axis)|
|Sensitivity||89dB (on axis at 2.83Vrms at 1m)|
|Harmonic distortion||2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz <0.3% 120Hz – 20kHz
|Nominal impedance||8Ω (minimum 3.0Ω)|
|Recommended amplifier power||50W – 200W into 8Ω on unclipped programme|
|Max recommended cable impedance||0.1Ω|
|Cabinet finishes||Gloss Black
Question & Answer
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
