Monitor Audio W1M In-Wall Speaker (Pc)
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
Description

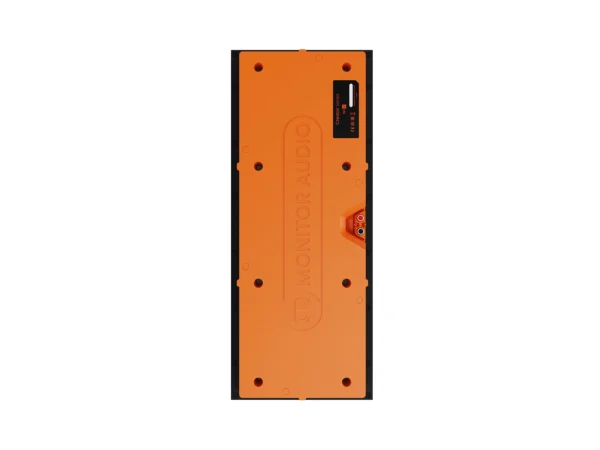

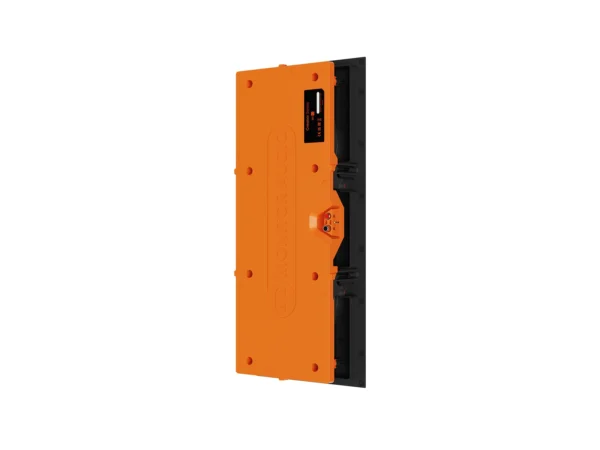

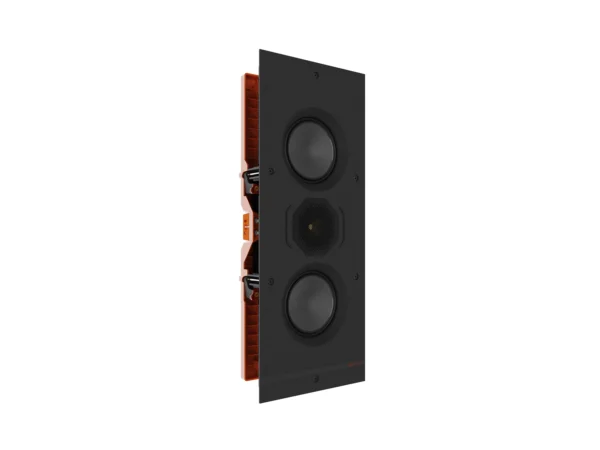

Monitor Audio W1M In-Wall Speaker
The medium-sized Tier 1 in-wall loudspeaker from Monitor Audio is engineered to deliver cost-effective yet impressive acoustic performance, making it an ideal choice for installations where simplicity and quality are essential. As a two-way model, it features a C-CAM mid-bass driver and C-CAM tweeter, combining to produce a sound experience that exceeds expectations.
The integration of both drivers within a single design offers significant performance benefits. This arrangement enhances clarity, widens dispersion, and ensures clear, lifelike high-fidelity sound that rivals the quality associated with Monitor Audio’s passive box loudspeakers. Whether it’s the subtle nuances of a classical composition or the dynamic range of a movie soundtrack, this in-wall speaker faithfully reproduces every detail with precision and authenticity.
With a cut-out dimension of 527 x 198 mm, the loudspeaker seamlessly fits into a variety of wall configurations, blending discreetly into any environment while delivering robust audio performance. The inclusion of the patented Quik-Link speaker cable connector revolutionizes the installation process, simplifying setup with its user-friendly design and accelerating the installation timeline. Additionally, the Tri-Grip fitting system has been refined for simple, reliable, and robust fitment, ensuring a secure installation that minimizes the risk of vibrations or movement that could compromise sound quality.
Overall, the Monitor Audio Tier 1 in-wall loudspeaker strikes a perfect balance between affordability and performance, offering a cost-effective solution without compromising on audio excellence. Whether installed in residential homes, commercial spaces, or entertainment venues, it stands as a testament to Monitor Audio’s commitment to delivering superior sound experiences that exceed expectations.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1"Â (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Technical Specs
Technical Details | |
---|---|
System Format | 2–Way |
Channels | 1 |
Frequency Response, Installed (-6dB) | 40 Hz – 30 kHz​ |
Nominal Impedance | 6 ohm |
Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 15 kHz |
Sensitivity (2.83Vrms@1m, Installed) | 87 dB |
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 113 dB |
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 75 W |
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 30 – 110 W |
Drive Unit Complement | 2 x 5" (127 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter |
Crossover Frequency | LF/HF: 2.75 kHz |
Mounting Depth | 85 mm (33/8") |
Cutout L x W | 527 x 198 mm (203/4 x 713/16") |
External Dimensions (Including Grille (H x W x D)) | 560 x 231 x 90 mm (221/16Â x 91/8Â x 39/16") |
Weight (each) | 3.4 kg (7 lb 8 oz) |
Pre-Construction Bracket | WM-B |
Cabinet Finish | Matt black & Orange​ |
Sold As | Single Unit |
