Monitor Audio SF1 On-Wall 3 Way Speaker
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: Black / High Gloss White
Warranty: 1 Year
Dispatch Time 1-2 Business Days
Description

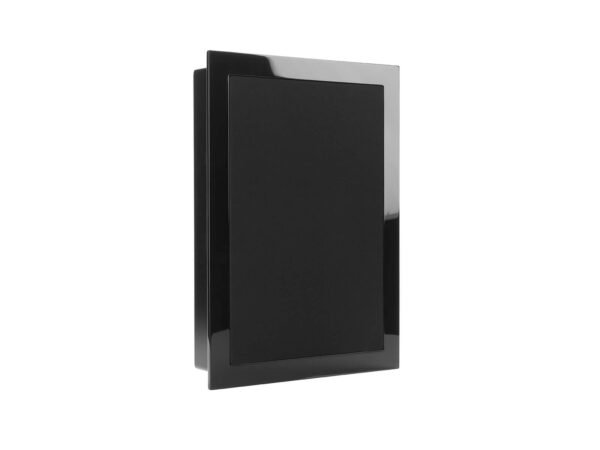

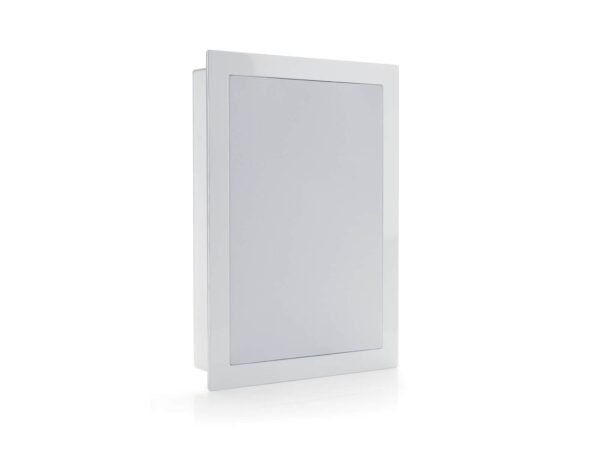

Monitor Audio SF1 On-Wall 3 Way Speaker
The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 1 On-Wall adopts the aspect of a typical portrait picture frame and is designed for music and film audio in a front left/right and surround configuration.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 1 On-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Technical Specs
Technical Details | |
---|---|
Frequency Response | 55 Hz — 35 kHz |
Sensitivity (1W@1M) | 86 dB |
Nominal Impedance |
8 ohms |
Power Handling (RMS) | 100 W |
Maximum SPL | 106 dBA |
Recommended Amplifier Requirements | 25 — 100 W |
Bass Alignment | Sealed Box |
Crossover Frequency | 550 Hz & 3.3 kHz |
System Configuration | 3-Way |
Drive Unit Complement | 1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST 1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter |
Dimensions (Including Frame (H x W x D)) | 539 x 389 x 87.5 mm (211/4Â x 155/16Â x 37/16") |
Depth From Wall | 87.5 mm (37/16") |
Weight | 7.44 kg (16.37 lbs) |
Sold As | Single Unit |
Monitor Audio
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
Rating & Review
There are no reviews yet.
