Monitor Audio CS180 In-Ceiling Speaker (Pc)
₹33,000.00
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
29 people are viewing this right now
Description
Key Features
Technical Specs
Reviews
Questions
Setup
Description

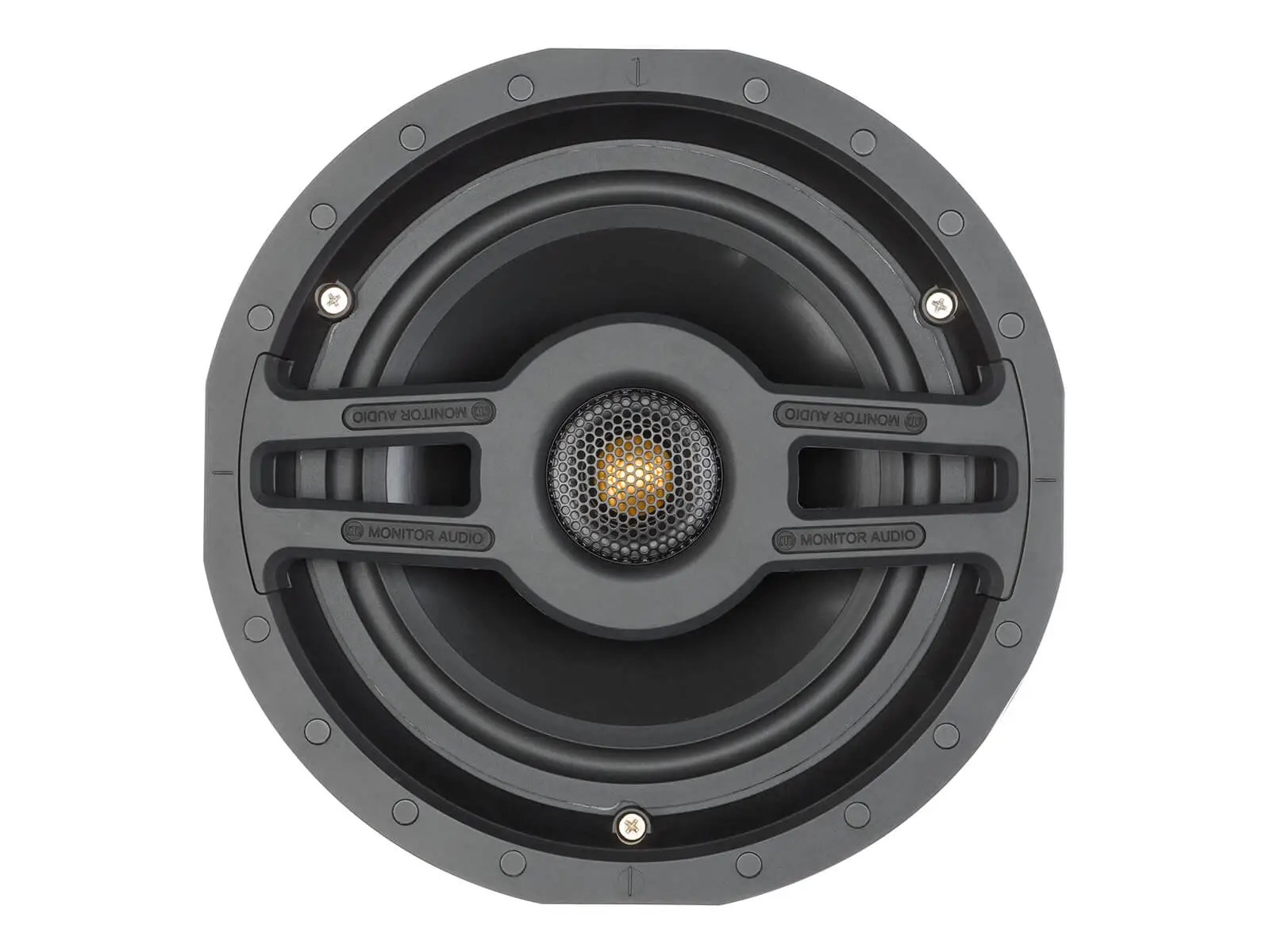

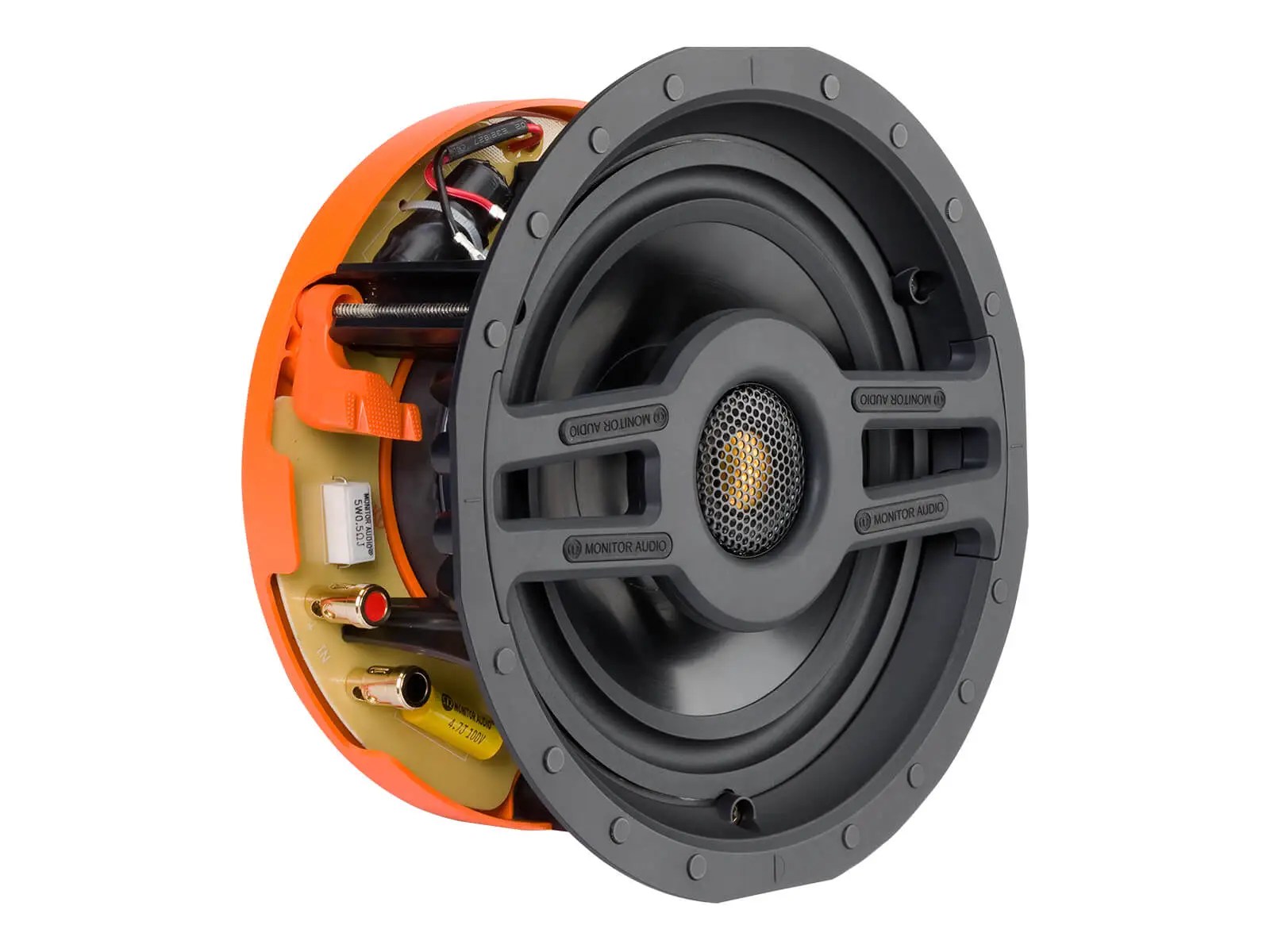

Monitor Audio CS180 In-Ceiling Speaker
The CS180 in-ceiling model marries Monitor Audio’s 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.
Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.
Optional square grille can be used with this model.
Technical Specs
| Technical Details | |
|---|---|
| Frequency Response | 48 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 110.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 1 x 8" MMP II cone bass driver. 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter |
| Acoustic Configuration | 2-way |
| Overall Diameter (Including Grille) | 251.7 mm (915/16") |
| Mounting Depth | 99.4 mm (315/16”) |
| Cut-Out Hole Diameter | 213 mm (83/8”) |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Optional Square Grille - Outer Dimensions | 246.7 x 246.7 mm (911/16 x 911/16") |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.72 kg (6 lb) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Green) |
| Back Box | CCBOX-R / CMBOX-R |
| Sold As | Single Unit |
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
