Monitor Audio C3L-CP In-Ceiling Speaker (Pc)
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
Description

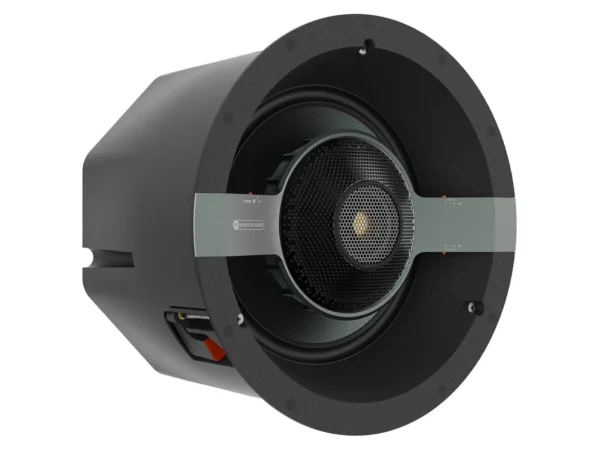

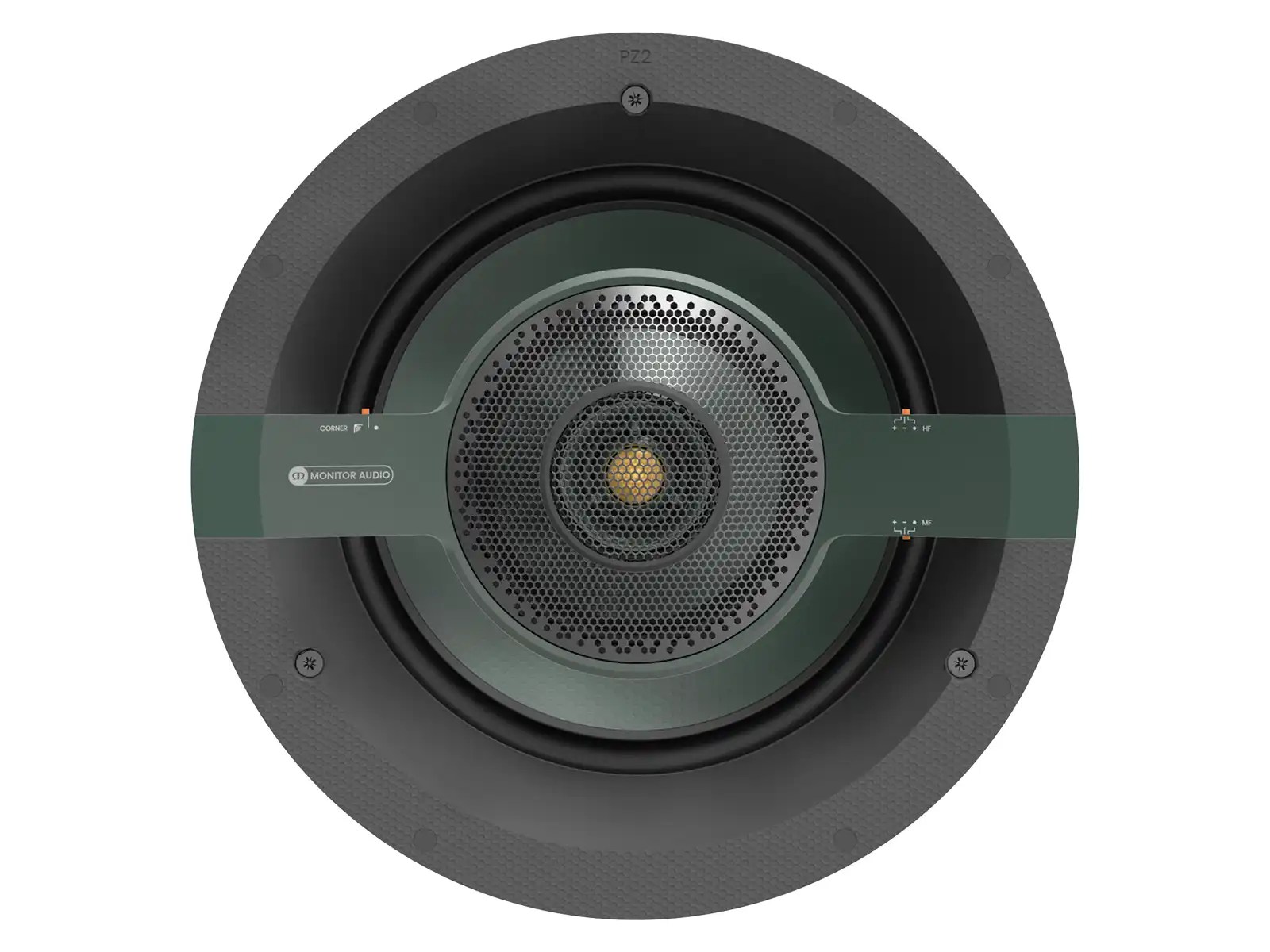

Monitor Audio C3L-CP
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. Monitor Audio C3L-CP is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed.

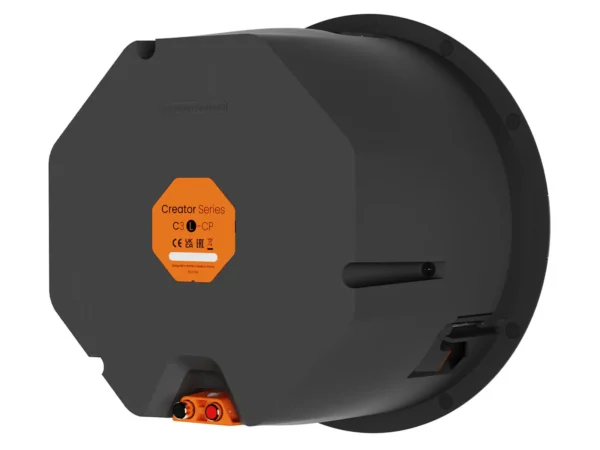

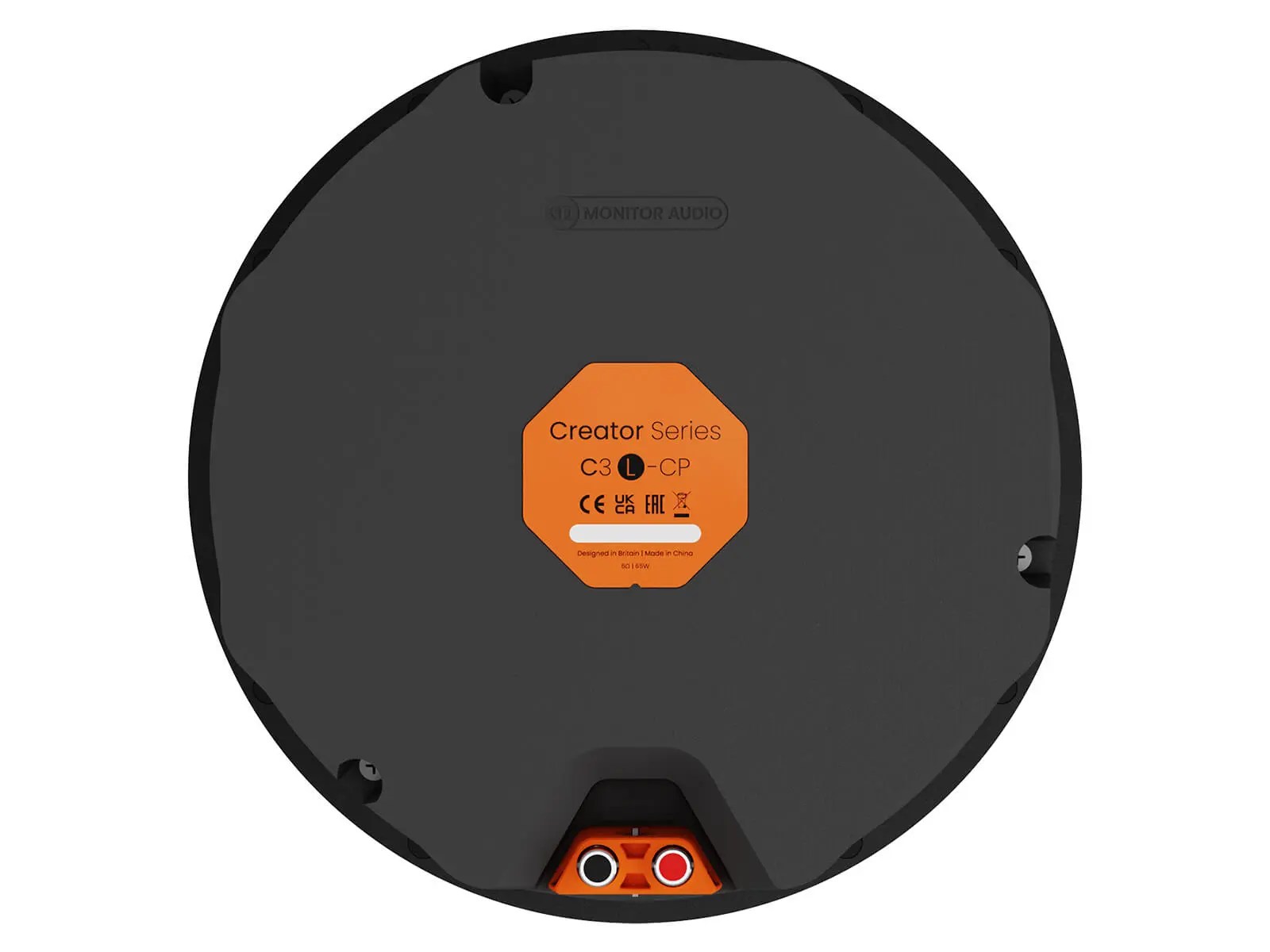

As a Controlled Performance (CP) model, it is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.
It has a cut out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Filled back box delivers consistent performance regardless of interior wall construction
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 x 1"Â (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II midrange driver
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Technical Specs
Â
Technical Details | |
---|---|
System Format | 3–Way |
Channels | 1 |
Frequency Response, Installed (-6dB) | 80 Hz – 35 kHz |
Nominal Impedance | 6 ohm |
Minimum Impedance (20Hz to 20kHz) | 4.9 Ohm @ 2 kHz |
Sensitivity (2.83Vrms@1m, Installed) | 89 dB |
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 122 dB |
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 120 W |
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 45 – 180 W |
Drive Unit Complement | 1 x 9" (229 mm) RDT III bass driver 1 x 4" (102 mm) IDC II midrange driver 1 x 1" (25 mm) IDC II tweeter |
Crossover Frequency | LF/MF: 700 Hz MF/HF: 3.5 kHz |
Mounting Depth | 177.5 mm (663/64") |
Cut-Out Hole Diameter | 248 mm (93/4") |
External Dimensions (Including Grille (H x W x D)) | 278 x 278 x 181​ mm (1015/16 x 1015/16 x 71/8") |
Weight | 5.7 kg (12 lb 10 oz) |
Pre-Construction Bracket | CL-B |
Cabinet Finish | Matt black & Orange​ & Green |
Sold As | Single Unit |
Corner Switch | On/Off |
HF Switch | - /0/ + |
MF Switch | - /0/ + |
