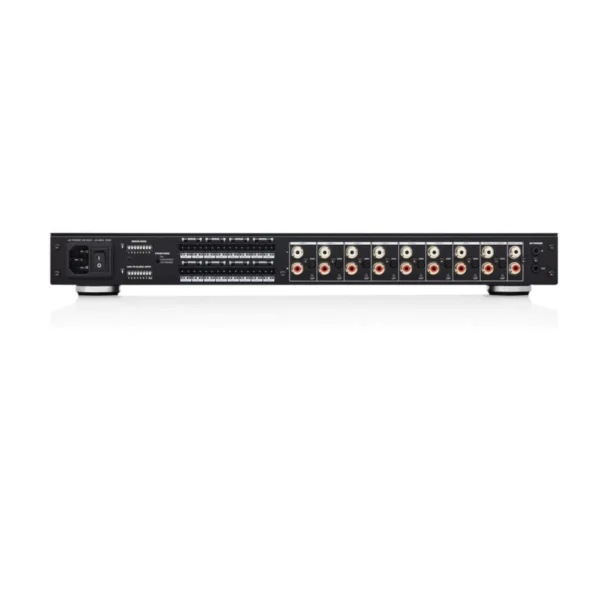

Bowers & Wilkins CDA-16 Distribution Power Amplifier
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: China
Color: Black
Warranty: 1 Year
Description
The Bowers & Wilkins CDA-16 distribution power amplifier can drive any Bowers & Wilkins custom installation speaker to new heights of performance. Offering 16 channels of power, the Bowers & Wilkins CDA-16 can enable your whole home with sound yet takes up minimal space attributable to its compact 1U design. Its configurable specification supports bridging its Class D stereo channels into even more powerful mono outputs if required.
Get Impressed with Powerful yet Compact Distribution Amplifier
Ensure the best possible sound from your in-wall or in-ceiling Custom Installation loudspeakers with our powerful yet compact distribution amplifier.
Takes Minimal Space
Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space thanks to its compact 1U design.
Enjoy Unmatched Flexibility
CDA-16 has a configurable specification supporting bridging of its Class D stereo channels into even more powerful mono outputs when needed.
Key Features
- 100 W x 16 channels Distribution power amplifier from B&W
- Compact 1U Design
- Mighty Flexible
Technical Specs
| Technical Details | |
|---|---|
| Load impedance range | >3Ω per channel (>6Ω in bridge mode) Output Power perchannel, non-clipped: >50W into 8Ω >100W into 4Ω Output Power bridge mode,non-clipped: >200W into 8Ω Output Power total,all channels: >400W short term >200W continuous average |
| DC offset voltage | <50mV |
| Frequency Response (-3dB) | <10Hz to >50kHz, any load impedance |
| Frequency response accuracy | 20Hz-20kHz: ±0.5dB |
| Signal to Noise ratio (Ref. 50W/8Ω) | >100dB A-Weighted |
| THD+N (1kHz, 12.5W, 4Ω) | typically 0.05% |
| Voltage Gain | 34.9dB to - infinity, adjustable |
| Input impedance | 15KΩ |
| Maximum input voltage | 6.8V peak (4.8V rms sine wave) |
| Signal sense threshold | 2.5mV (independent of Gain setting) |
| Wake-up time | <0.2s (If other zones active): <2s (From all zones inactive) |
| Turn-off time | 15 minutes from last signal detected |
| 12V trigger input threshold | typically 3V (recommended input is 5-15V) |
| Controls & Indicators Front panel | 1 x Power LED (unit active – White, Fault – Red) 8 x Zone status LEDs (Signal present – White, Fault – Red) |
| Rear panel: | 8 x 2-position DIP switches (link to global input) 1 x 3-position switch (power mode: on, auto detect, 12V trigger) 8 x input gain control with Clip indicator LEDs |
| Drive units | Input: 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)
Output: 1 x RCA (pair) Phono socket (global out) 8 x 5.08mm Pitch 4-way Phoenix Combicon style |
Bowers & Wilkins
There are no question found.
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
