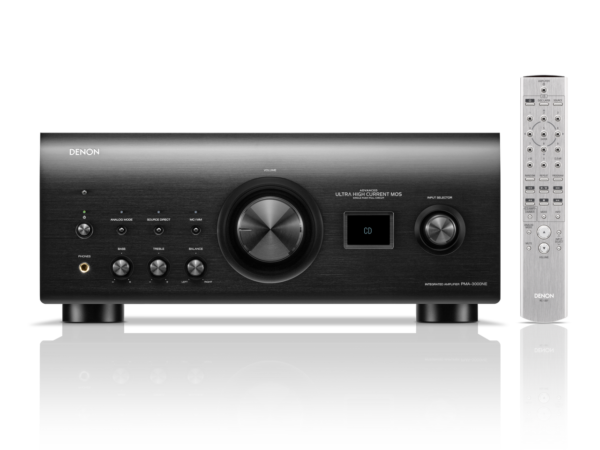

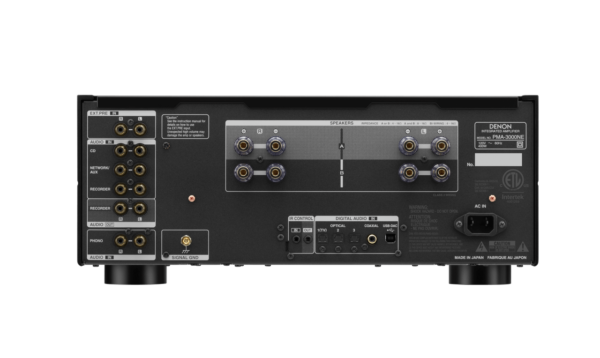

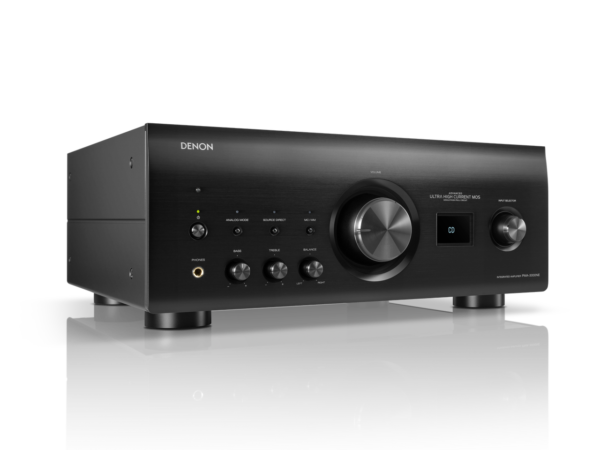

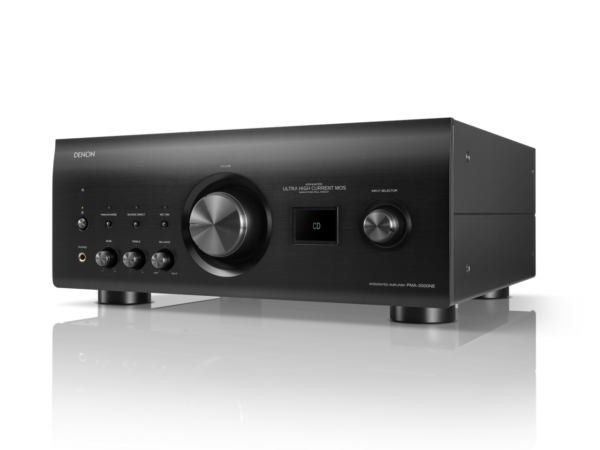

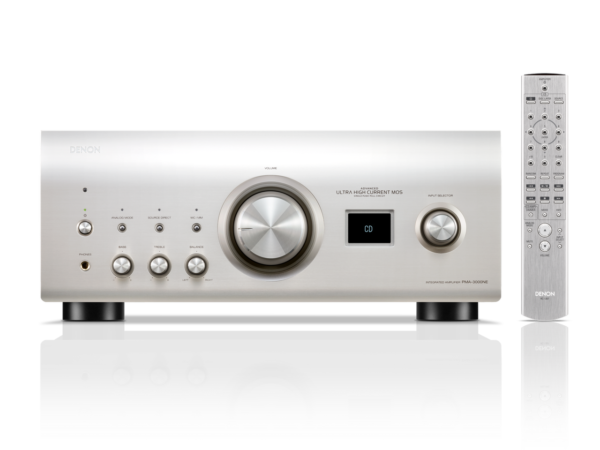

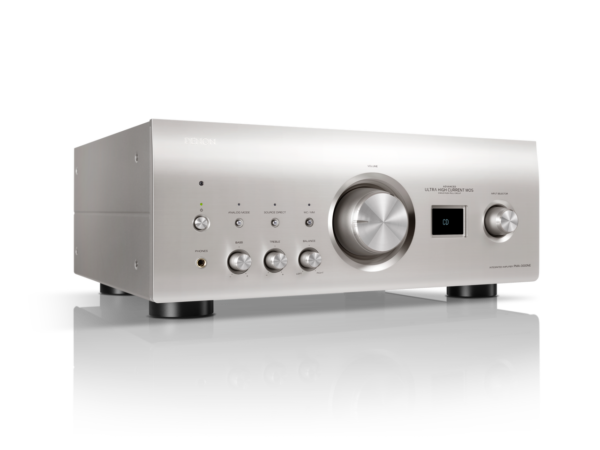

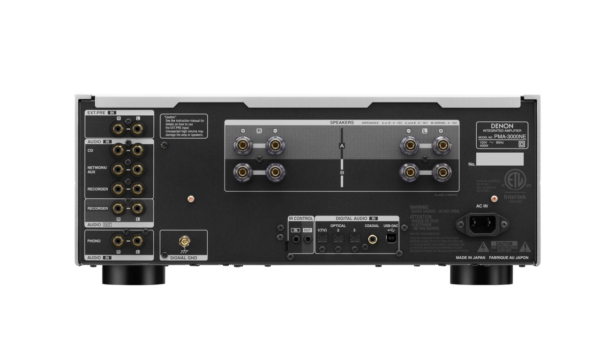

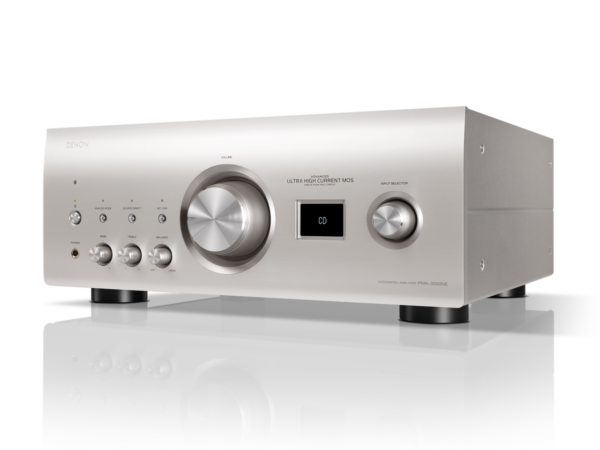

Denon PMA-3000NE 2 Ch. 160W Integrated Amplifier
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: Japan
Color: Black / Silver
Warranty: 1 Years
Description
Denon PMA-3000NE 2 Ch. 160W Integrated Amplifier with MM/MC phono stage
The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
Audio excellence, redefined
Drives even the most demanding speakers
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly integrate high-resolution digital audio
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your vinyl collection’s full potential
The PMA-3000NE’s phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
Advance amplifier design
The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its Advance UHC-MOS Single Push-pull Circuit and differential 1-stage amplifier drive demanding speakers with exceptional clarity and linearity.
Ultra AL32 Processing
Denon’s Ultra AL32 Processing uses interpolation algorithms to produce highresolution output. Supporting input signals up to 384kHz/32-bit, it upsamples for smoother waveforms and improved sound reproduction.
Key Features
- 2 channels
- 160 watts per channel
- MM/MC phono stage
- Ultra AL32 Processing
- Optical, coaxial, and USB digital connections
- Analog mode
Denon
Technical Specs
Â
| Technical Details | |
|---|---|
| Audio | |
| Rated Output Power | 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%) 160W + 160W (4 ohm, 1 kHz, THD 0.7%) |
| Total Harmonic distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 µV / 100 ohm |
| Input Sensitivity: CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 1.0V / 15 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB PHONO (MC): 74 dB CD: 107 dB |
| Power | |
| Power Consumption | 400W |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Analog Audio | |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| Digital Audio | |
| DAC Circuit | ES9018K2M × 4 |
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design | Yes |
| Asyncronous mode (for USB-B input) | Yes |
| Audio Video | |
| Phono Input | Yes (MM / MC) *default = MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical input / output (Maximum Support) | 3 / 0 (192 kHz/24-bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | AVR-A1H type Gold Plated w/Cover |
| Headphone Output | 1 (Turns off the speaker automatically when headphone is inserted) |
| Control/other | |
| Remote Control | Yes |
| Remote Control Bus Terminal | Yes (mini) |
| Network | |
| Wi-Fi | No |
| HEOS | No |
| USB B | |
| USB B (USB DAC) | 1 (Rear) |
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
| Unit (W × H × D) | 434 × 182 × 443 mm |
| Net Weight | 24.6 kg / 54.2 lbs |
| Panel Color | Silver, Black |
There are no question found.
Reviews (%d)
Setup
Setting up your system is fairly simple. You can follow the instructions in the video below or navigate through the product manual available at the bottom of this page. If you still face issues, feel free to connect with our expert team on chat or call.
