Monitor Audio C3L-A In-Ceiling Speaker (Pc)
- 100% brand new original products
- Official manufacturer’s warranty valid in India
- Price includes GST & Shipping
- Check for EMI & Pay on Delivery Options
Country of Origin: United Kingdom
Color: White
Warranty: 1 Year
Description

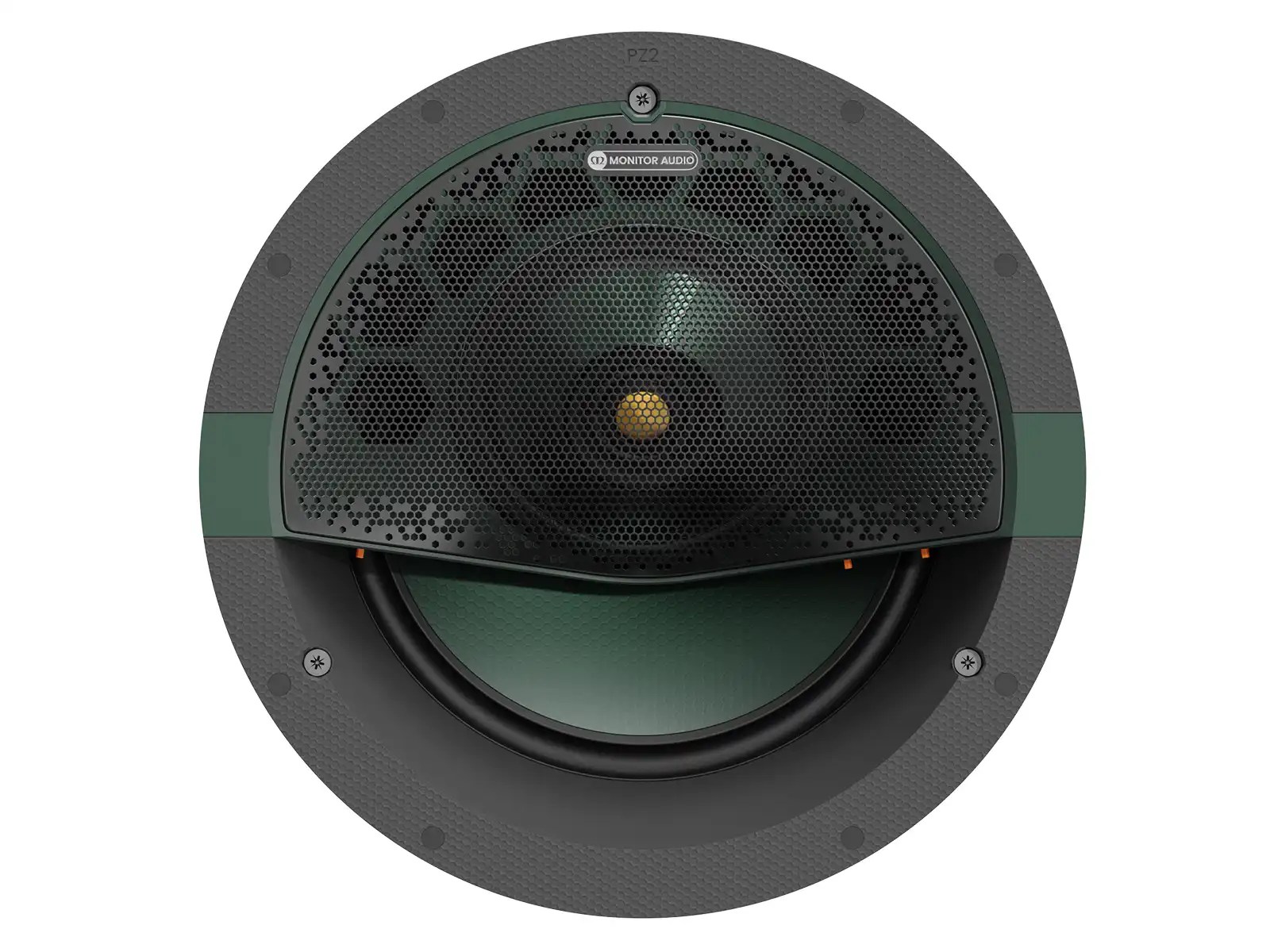

Monitor Audio C3L-A
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
Monitor Audio C3L-A has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Angled IDC II projects sound into the room for pin-point accuracy
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II mid-range driver
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Technical Specs
Â
Technical Details | |
---|---|
System Format | 3–Way |
Channels | 1 |
Frequency Response, Installed (-6dB) | 45 Hz – 35 kHz |
Nominal Impedance | 6 ohm |
Minimum Impedance (20Hz to 20kHz) | 4.6 Ohm @ 2 kHz |
Sensitivity (2.83Vrms@1m, Installed) | 89 dB |
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 119 dB |
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 150 W |
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 60 – 225 W |
Drive Unit Complement | 1 x 9" (229 mm) RDT III bass driver 1 x 4" (102 mm) IDC II midrange driver 1 x 1" (25 mm) IDC II tweeter |
Crossover Frequency | LF/MF: 700 Hz MF/HF: 3 kHz |
Mounting Depth | 157 mm (63/16") |
Cut-Out Hole Diameter | 248 mm (93/4") |
External Dimensions (Including Grille (H x W x D)) | 278 x 278 x 161​ mm (1015/16 x 1015/16 x 65/16") |
Weight | 5.6 kg (12 lb 5 oz) |
Pre-Construction Bracket | CL-B |
Cabinet Finish | Matt black & Orange​ & Green |
Sold As | Single Unit |
Corner Switch | On/Off |
HF Switch | - /0/ + |
MF Switch | - /0/ + |
